Heat dissipation reduced by 40%

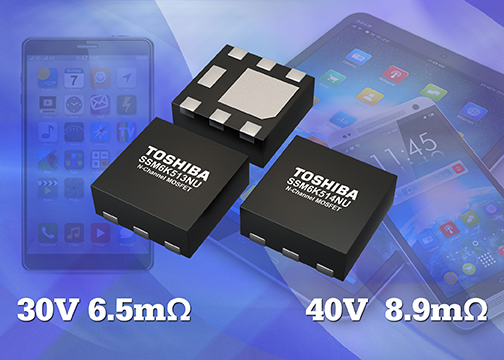

Toshiba Electronics Europe has introduced two N-channel MOSFETs for load switches in mobile devices that deliver class-leading [1] low on-resistance. The SSM6K513NU and SSM6K514NU help contribute to high system efficiency, low power consumption and are ideally suited for use in the latest battery operated portable applications.
Use of Toshiba’s ‘U-MOS IX-H series’ trench process ensures that the MOSFETs achieve low on-resistances. RDS(ON) rating are 6.5mΩ for the 30V SSM6K513NU and 8.9mΩ for the 40V SSM6K514NU. This allows the new products to reduce heat dissipation resulting from turn-on loss by approximately 40% when compared with Toshiba’s existing products, such as the SSM6K504NU.
The SSM6K513NU and SSM6K514NU are suitable for use in electric power switching applications over 10W, including small-size mobile devices that meet the USB Type-C™ and USB Power Delivery (PD) standards. Both MOSFETs are housed in compact SOT-1220 packages.
[1] For products with the same ratings, as of September 26, 2016. Toshiba survey.
*USB Type-C is a trademark of the USB Implementers Forum.
